When is an M.2 Heatsink Essential Beyond Looks?

Solid State Drives (SSDs) featuring M.2 form factors have revolutionised data storage, particularly with the advancements of PCIe Gen 4 and Gen 5 technologies. While these drives offer incredible speeds, they also generate significant heat, particularly under heavy workloads. To maintain optimal performance and prolong lifespan, installing an M.2 drive heatsink is often essential. This article explores the importance of heatsinks for M.2 drives, the thermal challenges they face, and best practices for optimising performance in various system configurations.

Last updated: 27 October 2023 (BST)

Key Takeaways

• PCIe Gen 4 and Gen 5 SSDs significantly outperform Gen 3 but generate more heat.
• M.2 drives can throttle performance at temperatures above 70°C, making heatsinks crucial.
• Small-form-factor cases complicate heat dissipation, increasing the need for effective cooling solutions.
• Improper placement of M.2 slots can lead to increased thermal load from nearby components.
• Lower operating temperatures enhance the longevity and reliability of M.2 drives.

The Evolution of PCIe and Its Impact on SSD Performance

PCIe, or Peripheral Component Interconnect Express, is a high-speed interface standard used for connecting components like SSDs to the motherboard. The advancement from PCIe Gen 3 to Gen 4 and Gen 5 has brought about exponential increases in data transfer rates. PCIe Gen 3 supports up to 1 GB/s per lane, while Gen 4 can reach 2 GB/s, and Gen 5 doubles that again to 4 GB/s. As a result, users can expect vastly improved performance, particularly in data-intensive tasks like video editing and gaming.

Understanding Thermal Throttling

Despite these advancements, with increased speed comes increased heat. M.2 SSDs, particularly those utilising PCIe Gen 4 and Gen 5, can start to experience thermal throttling when temperatures exceed approximately 70°C. This throttling leads to a drastic reduction in performance, as the drive attempts to cool itself by reducing its operational speed. Thus, maintaining optimal thermal conditions is pivotal for sustaining performance levels.

Why M.2 Drives Generate Heat

Heat generation in M.2 drives is primarily attributed to the following factors:

• High Data Transfer Rates: The faster the data is transferred, the more power is consumed, leading to increased heat output.
• Sustained Workloads: Intensive tasks like high-resolution video processing or gaming put a considerable load on the drive, exacerbating thermal outputs.
• Compact Size: M.2 drives are small, meaning they have less surface area to dissipate heat compared to traditional 2.5-inch SSDs.

Benefits of M.2 Heatsinks

Integrating an M.2 heatsink can significantly improve the thermal performance of your SSD. Here’s how:

• Improved Heat Dissipation: A heatsink allows for better heat distribution, reducing the temperature of the drive during operation.
• Consistent Performance: By keeping the drive cooler, a heatsink helps maintain consistent speeds, preventing thermal throttling.
• Increased Longevity: Lower temperatures can prolong the lifespan of the SSD, allowing for multiple uses over time.

Challenges of Small-Form-Factor Cases

Small-form-factor (SFF) cases present unique challenges when it comes to cooling components like M.2 SSDs. Here are some key issues:

Limited Airflow

In SFF builds, the available space can restrict airflow, making it difficult for components to cool effectively. The cramped quarters mean that heat generated by the M.2 drive can accumulate quickly, leading to increased temperatures.

Component Placement

In many modern motherboards, M.2 slots are positioned close to heat-generating components like the CPU and GPU. This proximity means that residual heat from these parts can significantly affect the SSD's thermal performance, further complicating the cooling challenge.

Choosing the Right Heatsink for Your M.2 Drive

When selecting an M.2 heatsink, consider the following factors:

• Size and Compatibility: Ensure that the heatsink fits within the dimensions of your case and does not obstruct other components.
• Material: Heatsinks made of aluminium or copper tend to offer better thermal conductivity.

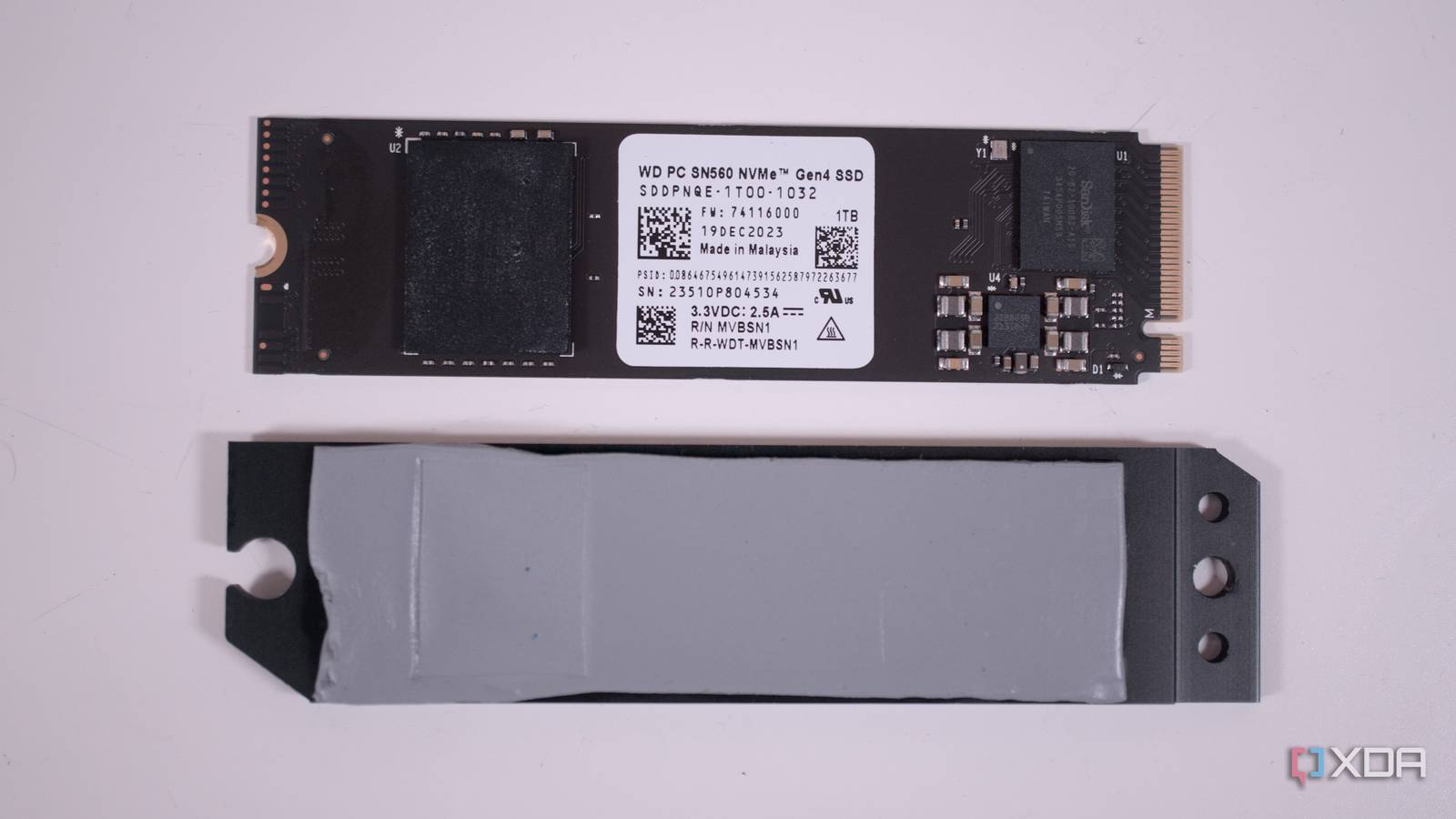

• Thermal Pads: A good thermal pad can enhance heat transfer between the drive and the heatsink, providing additional cooling benefits.

Installation Tips

Installing an M.2 heatsink is generally straightforward, but it's important to follow best practices:

1. Ensure the system is powered off and unplugged.
2. Remove the M.2 drive from its slot.
3. Clean the surface of the SSD and the heatsink with isopropyl alcohol.
4. Apply the thermal pad to the SSD, ensuring full coverage.
5. Attach the heatsink securely, making sure it fits snugly without excessive force.
6. Reinsert the M.2 drive into the motherboard slot.

Maintaining Optimal Performance Over Time

To ensure your M.2 drive maintains its performance and longevity, consider these ongoing practices:

• Monitor Temperatures: Use software tools to keep an eye on your SSD's temperatures, especially during heavy workloads.
• Regular Cleaning: Dust accumulation can affect airflow; clean your case regularly to maintain optimal thermal conditions.
• Check for Firmware Updates: Manufacturers often release updates that can improve performance and thermal management.

When Longevity is a Priority

For many users, the longevity of their components is just as important as their performance. Excessive heat can lead to premature failure, making thermal management crucial. An M.2 drive equipped with a heatsink can last longer, providing reliable storage for various applications, from operating systems to data archives.

Conclusion

As SSD technology continues to advance, the importance of thermal management cannot be overstated. M.2 drives, particularly those leveraging PCIe Gen 4 and Gen 5, require careful consideration regarding heat dissipation to maintain performance and longevity. By investing in a quality heatsink, monitoring temperatures, and ensuring proper airflow, users can enjoy the benefits of high-speed storage without compromising reliability. How will you manage the thermal demands of your next SSD upgrade?

#SSD #M2Heatsink #ThermalManagement

FAQs

What is the ideal temperature range for M.2 SSDs?

The ideal operating temperature for M.2 SSDs is typically between 30°C and 50°C. Temperatures above 70°C can lead to thermal throttling and reduced performance.

Can I use any heatsink for my M.2 SSD?

Not all heatsinks are compatible with every M.2 drive. It's crucial to ensure that the heatsink fits within your case and is compatible with the drive's dimensions and mounting system.

How do I install an M.2 heatsink?

Installation involves cleaning the SSD, applying a thermal pad, and securely attaching the heatsink before reinserting the drive into the motherboard.

Do all M.2 SSDs come with heatsinks?

No, not all M.2 SSDs come with heatsinks. While many high-performance models may include them, others may require separate purchase and installation.

How can I monitor my SSD temperature?

You can monitor SSD temperatures using software tools such as CrystalDiskInfo or manufacturer-specific utilities that provide real-time data on drive performance and health.
